Innovation and Performance. Burdick exercise stress testing systems offer unsurpassed quality and precision in easy-to-use, integrated systems.
Quest® Exercise Stress System
The Burdick fully integrated exercise stress system, Quest, combines innovative
touch screen technology with leading-edge diagnostic capabilities. Combined with a 15" color monitor, users can control the system by just touching the screen to program or select specific functions. Quest even thinks ahead for the user with LogiStep™, highlighting the step usually taken next. No more searching for the right key, knob or toggle.
Features:
- So easy to use, no manual required
- LogistepTM prompts suggest the next step in the test
- Multi-filter system produces cleaner reports
- Optional Microvolt T-Wave Alternans
- Three-year limited parts and labor warranty
- Utilizes T600 heavy-duty treadmill with extended walking surface and whisper-quiet operation
- 8 user-selectable trend graphs are available for on-screen display or printout
- Digital subtraction filter eliminates wandering baseline without effecting ST measurements
- Software upgradeable
- Treadmill or ergometer operation

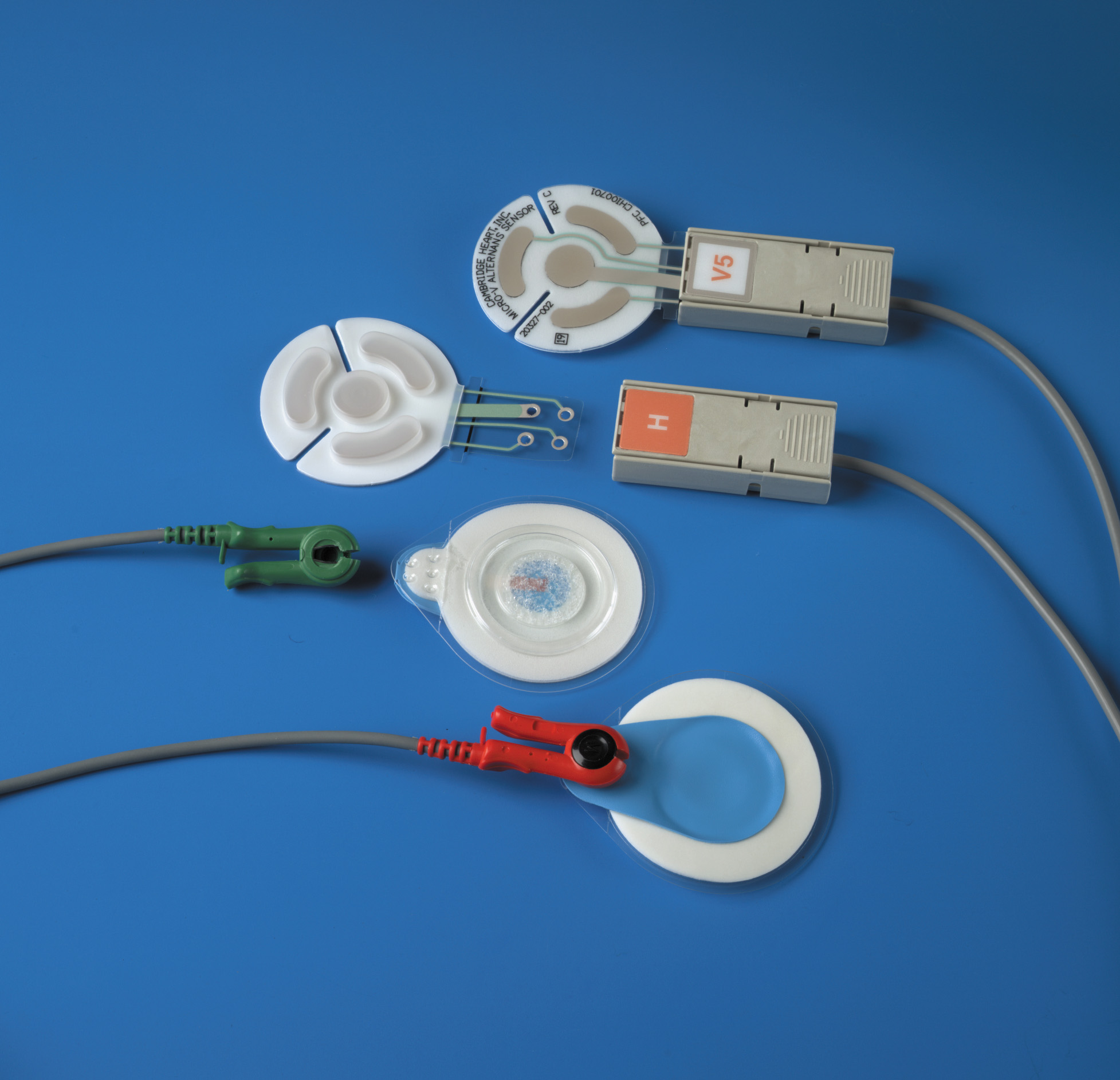

 Quest® T-Wave Alternans
An effective, non-invasive diagnostic test to assess SCD risk
T-wave alternans is an effective technology to evaluate a
patient’s SCD potential during standard stress testing Microvolt T-wave alternans measures subtle (1 microvolt) changes in the
morphology of the T-wave on an every beat basis. This minute change helps to
determine if the patient is susceptible to SCD. - Clinically proven technology at over 150 major medical institutions worldwide
 Reimbursable by Medicare and private pay insurance
T-Wave Datasheet - 198KB
 TM55 and TM65 Treadmills
- Digitally controlled treadmills.
Thousands of clinicians worldwide rely on the TM55 and TM65 to deliver the accuracy and reliability required for
exercise stress tests.
- Fewer moving parts reduces wear and tear and maximizes system reliability
- Controlled “soft start” for patient safety
- Digitally controlled AC-drive system provides high
torque for accurate speed and grade, regardless of weight.
- Quiet operation through entire speed range
eliminates office disruption
- Fully integrated into the Burdick Quest exercise
stress system
Treadmill Datasheet - 172KB

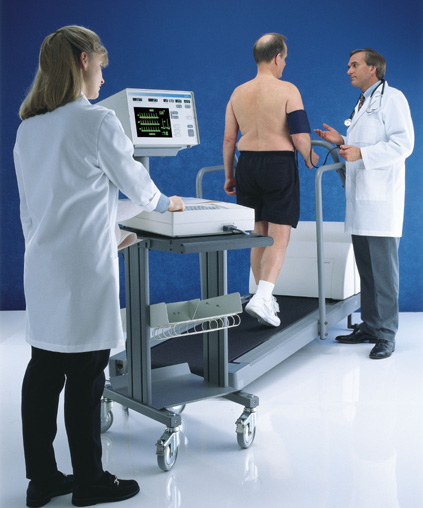

 ExTOL™ Exercise Stress Systems
All ExTOL systems feature your choice of one of our two sophisticated multi-channel electrocardiographs, an easy-to-operate monitor and the whisper-quiet T600 treadmill. ExTOL exercise stress testing systems also feature ST segment analysis with adjustable measurement point, pre-programmed or custom protocols, and a highly advanced "RAMPING" protocol – offering a linear workload approach to traditional exercise tolerance testing.
The versatile Burdick ExTOL Exercise Stress Systems can also provide sophisticated resting ECG technology and a comprehensive array of stress testing capabilities.
Features:
- Preprogrammed, custom and RAMPING protocols
- 12-lead ST analysis
- Automatic or manual operation
- Resting ECGs
- Comprehensive final reports
- High-resolution tracings
- Treadmill or ergometer operation
- Electrocardiographs available in interpretive and non-interpretive models
Bicycle Ergometer
 The new Bicycle Ergometer utilizes an electromagnetic braking system which guarantees years of reliable service while providing whisper-quiet operation. The hyperbolic workload control provides consistent patient workload regardless of pedaling speed.
Features:
- Flexible seat and handle-bar adjustment for optimal patient comfort
- Digital and analog interfaces
- Digital handle-bar mounted control unit offers fast and easy parameter changes
- Easily interfaced to Burdick exercise stress systems
|
|
TM55 and TM65 Treadmills
- Digitally controlled treadmills.
