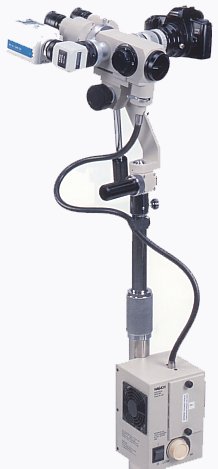

TriStar and PentaStar

• Highly versatile triple or five-step magnification
  stereoscopic colposcope

• Retractable vessel delineation filter is incorporated to provide clear visualization of vascular patterns

• Built-in dual optical beamsplitter permits the attachment of the co-observation teaching tube and photographic accessories for documentation purposes

• Can be used for routine gynecologic examinations or gynecologic research

• Image obtained through the accessory ports is identical to that viewed through the binocular tubes via the optical beamsplitter

• Video, photography and/or teaching tube may be added simply and at low cost for future needs

• High intensity, fiber optic halogen lighting system delivers white, clear, cool, natural-tone tissue illumination for accurate colposcopic examination

• Mounted on a 5-point base for
  stability and maneuverability

• Compatible with most small
  lasers on -the market

Product 906140 TriStar Triple Magnification Colposcope Product 906151 PentaStar Five Magnification Colposcope

Type

Power Source

Mounting System
Objective Lens
(Workinq Distance)
Field of View

Depth of Field

Vessel Delineation Filter
Illumination

Illumination Field
Worldwide Standards

3 step Magnification with Beamsplitter

115 volts AC/2 Amp
220 volts AC/1 Amp
5 Leg Rolling Base

300mm
8.5x=23.4mm, 13.6x=14.6mm,
21.3x=9.4mm
8x=3.lmm, 13.6x=1.2mm,
21.3x=0.9mm
Yes
Quartz Halogen 150 Watt,
125 Volts Lamp
38mm
UL, CSA, IEC601-1, CE

5 step Magnification with Beamsplitter

115 volts AC/2 Amp
220 volts AC/1 Amp
5 Leg Rolling Base

300mm
4x=55.8mm, 6x=35.7mm, 10x=22.3mm,
16x=13.9mm,25x=8.9mm
4x=3.96mm, 6x=2.79mm, 10x=1.86mm,
16x=1.34mm, 25x=1.02mm
Yes
Quartz Halogen 150 Watt,
125 Volts Lamp
38mm
UL, CSA, IEC601-1, CE
