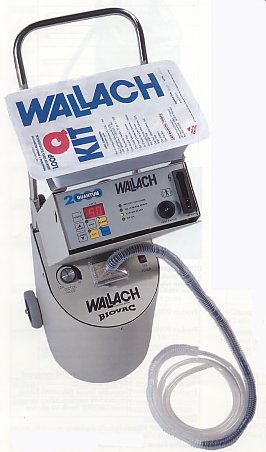

QUANTUM 2000

  • Full featured portable unit that is safe, simple-to-use, dependable and affordable

  • Exclusive, state-of-the-art microprocessor offers the latest in technology

  • Constantly and accurately monitors power levels for smoother, drag free cuts

  • High resistance tissue can be excised without
    bending the electrode

  • Minimal thermal damage for superior histological specimen for pathology

  • Coagulation mode supplies powerful (4000 volts at up to 100 watts) spray fulguration that can seal bleeders without tissue contact

  • Can be controlled by a footswitch or hand control

  • LED's on the front panel will precisely pinpoint any error and a clearly audible alarm will sound

  • Membrane touch technology control

  • Integration unit is a unique feature that automatically and instantly activates the Biovac Smoke Evacuator as you depress the footswitch or the hand control of the Quantum 2000
QUANTUM 2000 SPECIFICATIONS

Generator Type               Solid State
Output Configuration    Isolated
Protective Circuits         Dispersive Cable,
                                          Continuity Monitor
                                         & Alarm, Return
                                         Electrode Monitoring
                                         Type System
Mode of Activation     Handswitch or Footswitch
Power Indications        Wattage Digital LED
                                        Display, "RF
                                        On" Indicator LED

 LED Indicators
Status Lights:                  Patient Pad Loose
                                      RIF Leakage Error
                                      System Ready
                                      RF On
Mode Indicator Lights:   Wait Red
                                      Cut Yellow
                                      Blend Yellow
                                      Coag Blue
Activation Indicators       Visual and Audible
Input Voltage                  105-135VAC
Current                           3.15 Amps

High Frequency Output
Frequency:                     500 KHZ
                                      Monopolar Only
Mode    Power               Maximum Open
                                      Circuit Voltage
Cut        10- 100 watts    600
Blend     10-100 watts     600
Coag     10-100 watts      4000
