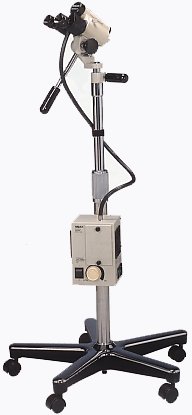

COLPOSTAR 1H

  • Precision, distortion-free stereo optics

  • Optimum single magnification

  • Wide field of view and great depth-of-field

  • Fiber optic halogen lighting system yields white, clear, cool, natural tone tissue illumination for accurate colposcopic examination

  • Magnification: 12x

  • Working Distance: 300mm

  • Features a compact center post with fine and coarse height adjustment, and a 5-point base for stability and maneuverability between examination areas

  • ColpoStar 1H meets worldwide electrical standards (UL, CSA, IEC601 -1, CE)
SPECIFICATIONS
Binocular Eyepieces:         15x
Objective Lens:                 0.8x
Magnification:                    12x
Working Distance:             300mm
Visual Field:                      18mm
Fine Focus Range:             40mm
Bulb:                                 150 watt Quartz Halogen
Illumination Field:               20mm
Filter:                                 Green Filter
Light Intensity:                   1800 foot candles (19,368 Lux) at 300mm
Power Requirement:          2 Amps/1 Amp 120/220 Volts AC
Working Height:                86cm to 11 6cm
Fine Height Adjustment:    75mm
Base:                                High Impact Plastic, 5 legs with swivel casters

Product
906135
ColpoStar 1H
