Suntech Medical Instruments

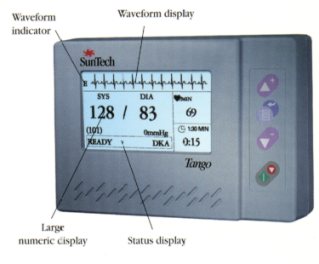

Tango


Price / Parts List

Tango is a non-invasive Stress Test Blood Pressure Monitor designed to automatically measure and display a patient's systolic and diastolic pressures in treadmill, ergometer and pharmacological stress tests. Tango's differential advantage is the application of SunTech proprietary Dimensional K-Sound Analysis, developed to optimize performance in 'high noise' and 'movement' environments.

Features


  • 3-D K-Sound Analysis (DKA)
    Korotkoff sounds are distinguished from artifact noise so that systolic and diastolic pressures may he measured accurately.

  • RS232 Interface capability to most ECG systems
    ECG stress system initiates BP readings and automatically records BP data on ECG strip chart.

  • Real Time Wave Form Display
    Visually confirm the BP readings and signal quality at any time.

  • Tango User Realtime Display
    Displays current monitor status and help messages.

  • Historical Tabular Data
    Stores multiple studies for data retrieval.

  • BP Readings initiated automatically or manually
    Concentrate on the patient's performance during the study.

Options

Internal ECG · Rail/pole clamp · Languages

Specifications

Technique:

Primary - SunTech 3-Dimensional K-sound Analysis for stress test measurements. Secondary - Oscillometry with smooth linear deflation for resting measurements.

Interfaces:

ECG and RS232 interface for most ECG stress test Systems.

R-Wave source:

Primary - digital/analog signal from external ECG source. Secondary - the optional Tango patient cable with V2,V6, Ground configuration.

Measurement range:

Systolic: 10-300mmHg
Diastolic: l0-300mmHg
Heart rate: 0-240 BPM

Accuracy:

Blood Pressure Measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method, within the limits prescribed by theAmerican National Standard, Elecronic or automated sphygmomanometers.
Sampling Intervals:

On command from ECG stress test system, manual or automatic sample periods from 1 minute to 60 minute Intervals.
Alarms:

Onscreen message and audio alarm tone for user defined ranges.
Power:

SunTech external supply, + 9VDC output @ 2Amps.
Dimensions:

Size: 22.8 cm x 15.9 cm x 9.7 cm
(9.0" x 6.3" x 4.1").
weight: 1.2 kg (42.toz)
Standards

EN 60601-1, UL 2601, CAN/CSAC22.2No.601. 1 Cleared by the FDA by 510K process.





Price $4995.00
Check the Price List page for quantity discounts.

Specifications subject to change without notice
Refer to the Tango operator's manual for complete description, instructions, warnings, cautions and specifications
