PERFORMANCE
Measurement Range
SP02: 1 % to 100%
Pulse Rate: 20 to 250 beats per minute (bpm)
Accuracy
Saturation (% Sp02±1 SD):
Without motion:
Adults 70% to 100% ± 2 digits
Neonates 70% to 100% ± 3 digits
1 % to 69% unspecified
With motion*:
Adults and Neonates
70% to 100% ± 3 digits
1 % to 69% unspecified
Pulse rate: Without motion:
20 to 250 bpm ± 3 digits
With motion:
20 to 250 bpm ± 5 digits
ELECTRICAL
Instrument
Power requirements: 100 to 120
VAC, 200 to 240 VAC,
50/60 Hz, 20 VA
Fuse Rating: 0.5 Amperes
Battery
Type: sealed lead-acid internal battery
Battery capacity: minimum of 2 hours
using new, fully charged battery
ENVIRONMENTAL
Operating Temperature
Instrument: 5'C to 40'C
Transport/Storage Temperature
(In shipping carton): -20'C to 70'C
Operating Humidity
15% to 95% noncondensing
Operating Altitude
-1 280 ft to 12,000 ft
(-390 rn to 3,658 m)
[ 106 kPa to 70 kPa] |
PHYSICAL CHARACTERISTICS
Weight
5.7 lb/2.6 kg
Size
3.3 in H x 10.4 in W x 6.8 in D
(8.4 cm x 26.4 cm x 17.3 cm)
Equipment Classification
IEC 60601-1
CSA 601.1
UL 2601 -1
IPX1 Approved
Emissions Compliance
• CISPR 11, Group 1,
Class B equipment
• EN55011 Emissions Classification
Output
• EIA-232 and RS-422 digital output
from serial port
• Compatible with Score'" software
• Nurse call capability
• Analog Output (0-1V) Sp02, pulse rate and plethysmographic waveform

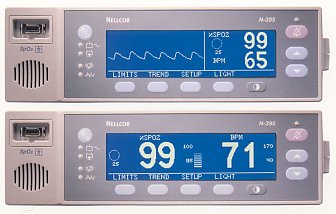

Displays /Indicators
High quality LCD graphical screen
Plethysmographic waveform or magnified view ("Big Numbers" with pulse amplitude indicator).
Visual indicators: Pulse search, audible alarms silenced or off, artifact indicator, low battery and battery charging, sensor off, and SatSeconds clock.
Alarms
Audible and visual alarms for high/low saturation and pulse rate
SatSeconds Alarm Management settings: 10, 25, 50 and 100 or OFF
Audible and visual warning indicators for low battery
Audible sensor disconnect alarm
Displayed saturation and pulse rate alarm limits
Optional Accessories
• GCX mounting brackets
• Interface cables |
