 Complete exams with confidence, in one minute or less.
Only Achilles InSight enhances confidence with real-time ultrasound imaging. Instead of a "blind" measurement, the Achilles InSight instantly provides clear ultrasound imaging* of the os calcis. It's your assurance that every patient's measurement is in the correct position for an accurate and precise test result.
One touch of the color-display screen starts the exam. Instantly updated images from Achilles InSight's solid-state transducer provide feedback that the measurement is on-track. The on-board printer then generates a concise patient report.
* For non-diagnostic use only.
Achilles InSight
Different People, Same Test Quality
|
|
|
Achilles InSight gives you reliable results - for any patient who needs testing, no matter who performs the test. That's because its design removes major sources of test variation. With less than 30 minutes training, existing staff can produce consistent, high-quality results.
Imaging for consistent measurement position.
Test consistency starts with the ultrasound imaging system. The on-screen display lets the operator adjust for the size or structure of the patient's foot. You never scan "blind." Realtime imaging of the os calcis allows you to correctly position the measurement-every time.
|
Os Calcis:
A preferred site for fracture risk and assessment
Evidence supports the value of Densitometry at the heel as
the optium peripheral site for fracture risk assessment.
- Easy accessibility
- Metabolically active bone
- High trabecular contentcontent (80% cancellous)
- Weight bearing - like the spine and femur
- Allows early detection and intervention
|

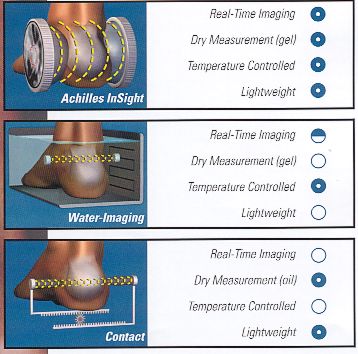

AquaDry™ Technology
The Accuracy of Water
Convenience of Dry
Thermally-controlled water is the gold-standard medium for ultrasound studies due to its inherent consistency and accuracy. However, water-based systems lack the convenience of so-called "dry" measurements, which require only gel.
With AquaDry-Technology you don't have to sacrifice accuracy for convenience. AquaDry keeps the foot dry by using water encapsulated in compliant membranes that conform closely to the patient's foot, providing large-area imaging through a temperature-controlled medium. AquaDry's "closed-loop system" requires virtually no maintenance, and clean-up is easy using standard ultrasound gels - not mineral-based oils.
|
|
|
Achilles InSight
Clinical Results
Achilles technology gives you clinical information you can trust. It is the only bone ultrasonometer whose FDA indications for use allow comprehensive skeletal assessments (in conjunction with other risk factors) and the monitoring of bone changes.
|
|
Assess fracture risk - for all at-risk ages.
Large prospective studies show Achilles InSight as effective as DEXA of the femur in predicting hip fractures. It is the first ultrasonometer proven reliable in prospective trials for assessing fracture risk in all post-menopausal women, ages 45 to 75+
|
Use standard WHO Diagnostic Classification.
Achilles InSight results provide T-scores that correspond to diagnostic criteria defined by the World Health Organization (WHO) Unlike other peripheral measurements, Achilles InSight results demonstrate a similar response to aging as found at the hip and spine - with an average decline of 30% by age 70. Other measurements, such as at the finger or forearm, demonstrate lower sensitivity to aging.
|
|
|
|
Monitor treatment compliance with confidence.
Achilles InSight has been proven to be as precise as DEXA for monitoring bone changes through aging or response to therapy. Its standardized precision has been shown to be two to three times better than for other ultrasonometers in head to head trials.
|
Achilles InSight
The System of Choice
|
There are good reasons why more than 5,000 facilities around the world have tested millions of patients with the Achilles bone ultrasonometer. The Achilles InSight brings high-quality clinical results through excellent precision, high reliability, the convenience of AquaDry technology, and now, real-time imaging that eliminates "blind" measurements.
Most important, it comes with the broadest indications for use among bone ultrasonometry devices. See the advantages for yourself.
|
Achilles InSight
Designed to Suit Your Needs
|
Achilles InSight is built to fit seamlessly into your practice. The standard system is a fully self-contained unit with internal microprocessor and printer. The on-board memory can store up to 100 patient tests, which you can review or print at your convenience. Printouts are easily attached to permanent patient records.
Save time with convenience features.
Once you position the patient's foot, a touch of the screen starts a one-minute exam. The color screen and menudriven operation guide you through every step. Printouts include detailed patient information, report values, reference graphs, and risk assessment based on WHO criteria - the complete picture.
Add flexibility.
The Achilles InSight printer option provides full-size color reports.
Transport your system easily and safely.
Make transport convenient with an optional, soft-sided, wheeled travel bag. Protect your unit during air travel with a special hard-sided flight case.
|
|
|
